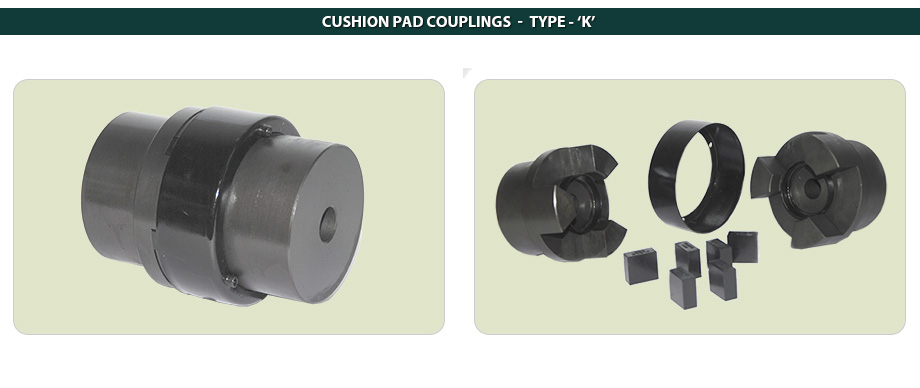

We are Manufacturer, Supplier, Exporter & Services of Cushion Pad Couplings, K Type Couplings and our setup is situated in Pune, Maharashtra, India. |
 |
| |
| • Suitable for torques upto 215 kg-m. |
| |
| • Available with cushion pads instead of star which facilities easy removal of rubber elements without disturbing the equipments. |
| |
| • Seamless retainer rings provided on inside & outside diameter of coupling to support the pads. |
| |
| • Pads can be inspected easily from time to time. |
|
| |
| |
 |
|

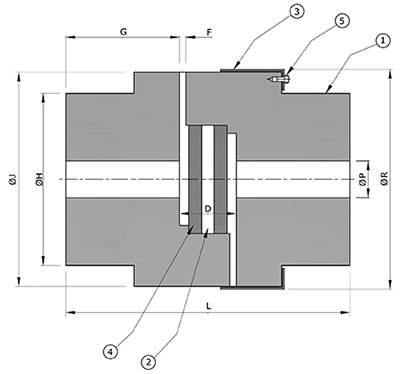

| SR.NO |
PART NAME |
MATERIAL |
| 1 |
Coupling Hub |
Cast Iron ( GG 25 ) |
| 2 |
Pads |
Nitrile Rubber |
| 3 |
O.D.Ring |
MS |
| 4 |
I. D. Ring |
MS |
| 5 |
Set Screw |
MS |
|
|
| |
| |
|
| SIZE |
RATED HP AT RPM |
RATED TORQUE |
BORE SIZE Ø P |
JAW DIA. |
RING DIA. |
HUB DIA. |
TOTAL |
LENGTH THROUGH |
GAP BET. |
DIST.
BETWEEN |
WEIGHT PILOT COUPLING |
| |
1000 |
1500 |
3000 |
kg-m |
PILOT |
MAX. |
ØJ |
Ø R |
ØH |
LENGTH L |
BORE G |
JAW & BODY F |
SHAFTS D |
(APPROX)KG. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 226 |
46.0 |
69.0 |
138.0 |
32.93 |
25 |
65 |
137 |
142 |
115 |
178 |
70 |
3 |
38 |
13.0 |
| 276 |
73.0 |
109.5 |
219.0 |
52.26 |
25 |
75 |
157 |
162 |
127 |
200 |
80 |
3 |
40 |
18.5 |
| 280 |
110.0 |
165.0 |
330.0 |
78.76 |
30 |
80 |
192 |
198 |
140 |
200 |
80 |
3 |
40 |
25.0 |
| 295 |
180.0 |
270.0 |
540.0 |
128.88 |
30 |
95 |
237 |
242 |
160 |
238 |
95 |
3 |
48 |
44.0 |
| 2955 |
300.0 |
450.0 |
900.0 |
214.80 |
30 |
100 |
237 |
242 |
180 |
264 |
108 |
3 |
48 |
53.0 |
| All dimensions in mm |
|
| |
| |
|
|
| |
| |
|
