We are Manufacturer, Supplier, Exporter & Services of Standard Star Couplings, Spider Couplings, Coupling Manufacturer, S Type Coupling and our setup is situated in Pune, Maharashtra, India.

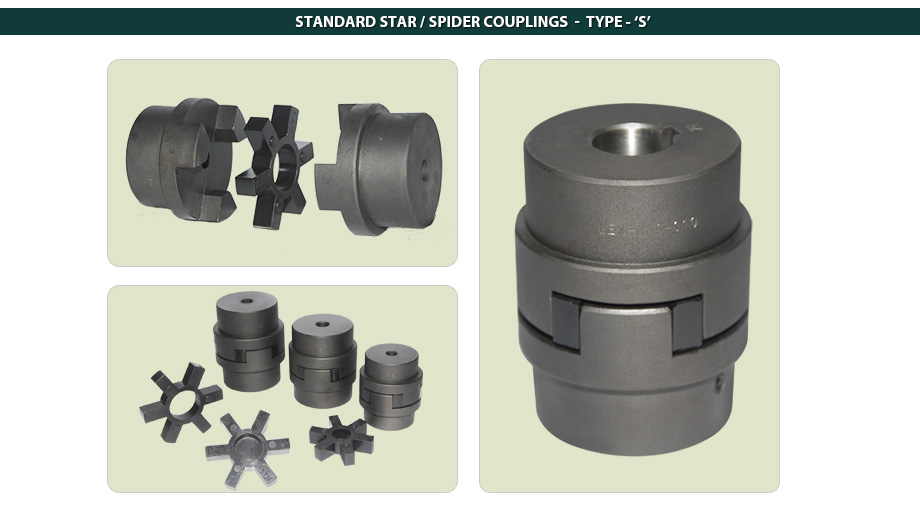

Standard Star Couplings / Spider Couplings

• Widely accepted star / spider design

• Low weight to high torque ratio

• Easy for alignment of equipments.

• Ranging up to torque of 24 kg-m capacity.

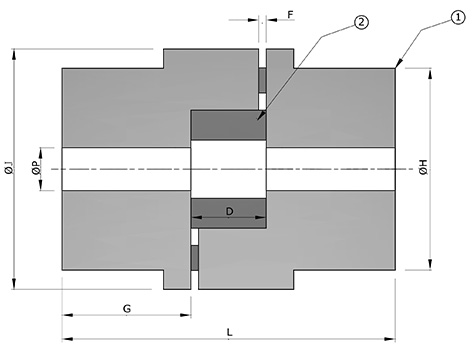

type s drawing
PART LIST
SR.NO PART NAME MATERIAL
1 Coupling Hub Cast Iron ( GG 25 )
2 Star/ Spider Nitrile Rubber


TYPE - S
SIZE RATED HP AT RPM RATED TORQUE BORE SIZE Ø P JAW DIA. HUB DIA. TOTAL LENGTH THROUGH GAP BET. DIST.
BETWEEN
WEIGHT PILOT COUPLING
  1000 1500 3000 kg-m PILOT MAX. ØJ ØH LENGTH L BORE   G JAW & BODY  F SHAFTS D (APPROX)KG

75 1.0 1.5 3.0 0.71 9 22 44.5 39 55 21 2 13 0.45
95 2.8 4.2 8.4 2.00 10 28 54 49 63 25 2 13 0.80
99 4.0 6.0 12.0 2.86 10 30 65 51 72 27 3 18 1.15
100 6.0 9.0 18.0 4.29 10 38 65 57 88 35 3 18 1.55
110 11.0 16.5 33.0 7.87 15 42 85 76 108 43 3 22 3.25
150 17.0 25.5 51.0 12.17 15 48 96 80 115 45 3 25 4.15
190 22.0 33.0 66.0 15.75 20 60 115 102 133 54 3 25 7.45
225 33.0 49.5 99.0 23.62 20 65 127 108 153 64 3 25 9.95
All dimensions in mm
